Model No. B_31

*Technical--Specification*
  A.C Motor Speed Control Reguletor Drive. and Auto Soft Start/ With Breck Stop Time.
  *Break Dealy Timer, Wircut Sensor Timer with ON/OFF,  Motor Speed Dispaly, Auto/Manual Button,Indicatore LED, Easy Control System Setting ​etc*
 1: Model Number = Big Automatic -   T_31.
 2: Die Set = 8 Set , Die No. - 1,3,5,8,9,10,11,12,
 3: Head  = One Head.
 4: Winding Speed =1500RPM.
 5:Winding Direction = Clockwise and anticlockwise.
 6: Stator Diameter = 110 mm   To 200 mm.    MAX.
 7: Stator Thickness = 10mm  To  30mm  (can be adjusted).
 8: Wire Diameter = 34 SWG  To 36 SWG.
 9:  Number of Coil / Poles = 12,14,16,18,6, Coil Sator Winding.
 10: Capacity = 8 to 10 stator per hour.
 11: Miter Microcontroller = Digital Pre-set counter (4 digit x 2) With Speed Control.
 12: Power supply = 220 V AC single phase 50 Hz.
 13: Motor = 1/4 H.P. single phase 220 V AC With  Breck.
 14:  Wire cut = Autometic Stop (Yes).
 15: Power fail = Memory Detects (No copper wastage ).
 16: Dimensions Around = Lenth 24 Inch x Width 13 Inch x Height 44 Inch.

Model No. B_32

*Technical--Specification*
  A.C Motor Speed Control Reguletor Drive. and Auto Soft Start/ With Breck Stop Time.
  *Break Dealy Timer, Wircut Sensor Timer with ON/OFF,  Motor Speed Dispaly, Auto/Manual Button,Indicatore LED, Easy Control System Setting ​etc*
 1: Model Number = Big Automatic -   T_32.
 2: Die Set = 12 Set , Die No. - 0,1,3,4,5,6,7,8,9,10,11,12,
 3: Head  = One Head.
 4: Winding Speed =1500RPM.
 5:Winding Direction = Clockwise and anticlockwise.
 6: Stator Diameter = 110 mm   To 200 mm.    MAX.
 7: Stator Thickness = 10mm  To  30mm  (can be adjusted).
 8: Wire Diameter = 34 SWG  To 36 SWG.
 9:  Number of Coil / Poles = 12,14,16,18,20,6, Coil Sator Winding.
 10: Capacity = 8 to 10 stator per hour.
 11: Miter Microcontroller = Digital Pre-set counter (4 digit x 2) With Speed Control.
 12: Power supply = 220 V AC single phase 50 Hz.
 13: Motor = 1/4 H.P. single phase 220 V AC With  Breck.
 14:  Wire cut = Autometic Stop (Yes).
 15: Power fail = Memory Detects (No copper wastage ).
 16: Dimensions Around = Lenth 24 Inch x Width 13 Inch x Height 44 Inch.

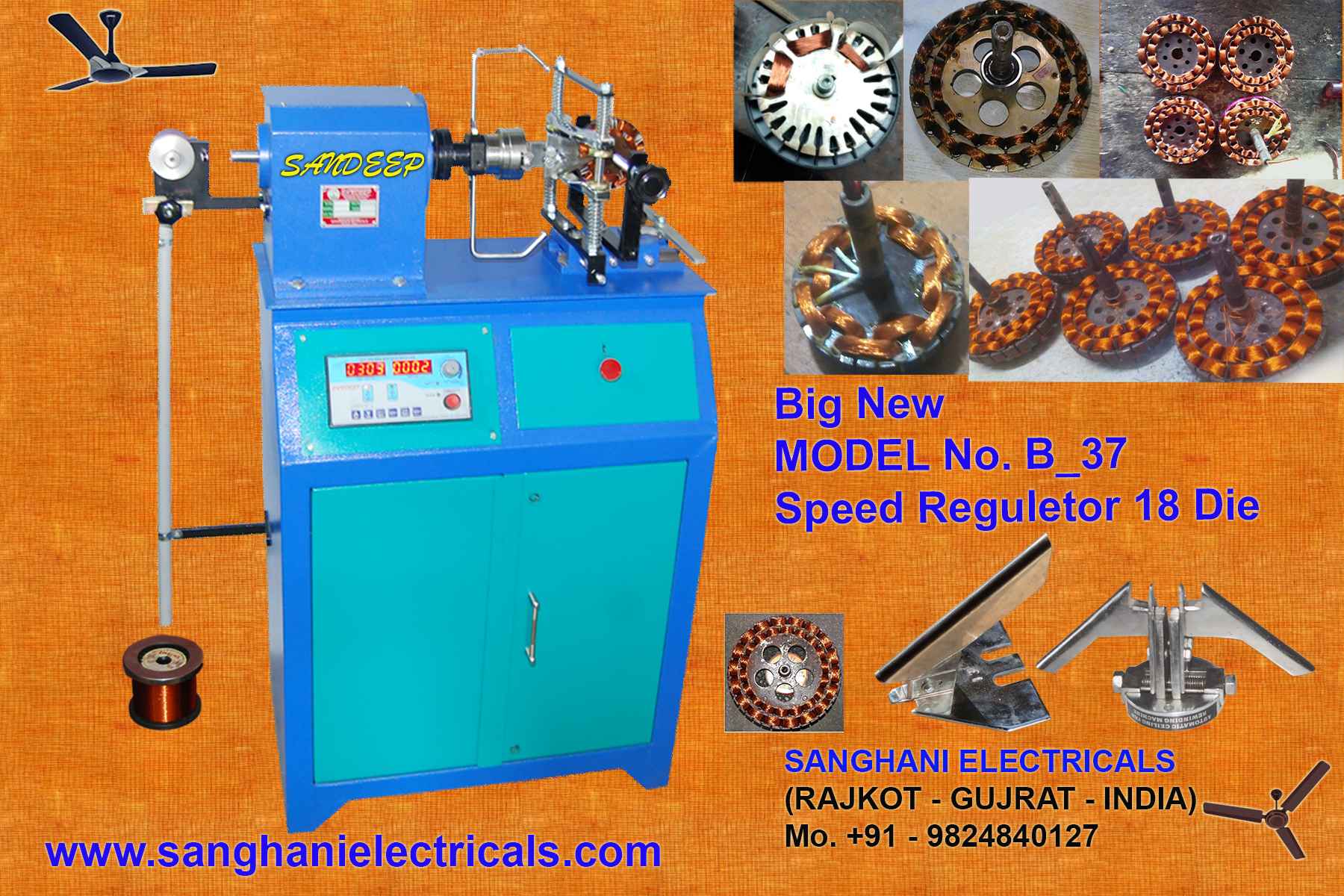

Model No. B_37

*Technical--Specification*
  A.C Motor Speed Control Reguletor Drive. and Auto Soft Start/ With Breck Stop Time.
  *Break Dealy Timer, Wircut Sensor Timer with ON/OFF,  Motor Speed Dispaly, Auto/Manual Button,Indicatore LED, Easy Control System Setting ​etc*
 1: Model Number = Big Automatic -   T_37.
 2: Die Set = 18 Set , Die No. - 0,1,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,
 3: Head  = One Head.
 4: Winding Speed =1500RPM.
 5:Winding Direction = Clockwise and anticlockwise.
 6: Stator Diameter = 110 mm   To 200 mm.    MAX.
 7: Stator Thickness = 10mm  To  30mm  (can be adjusted).
 8: Wire Diameter = 34 SWG  To 36 SWG.
 9:  Number of Coil / Poles = 12,14,16,18,20,6+6+6,8, Coil Sator Winding.
 10: Capacity = 8 to 10 stator per hour.
 11: Miter Microcontroller = Digital Pre-set counter (4 digit x 2) With Speed Control.
 12: Power supply = 220 V AC single phase 50 Hz.
 13: Motor = 1/4 H.P. single phase 220 V AC With  Breck.
 14:  Wire cut = Autometic Stop (Yes).
 15: Power fail = Memory Detects (No copper wastage ).
 16: Dimensions Around = Lenth 24 Inch x Width 13 Inch x Height 44 Inch.
